Dienstag, 11. September 2012, 20:15

Scharnhorst

I am now posting the second part of the range finder assembly. :wink:

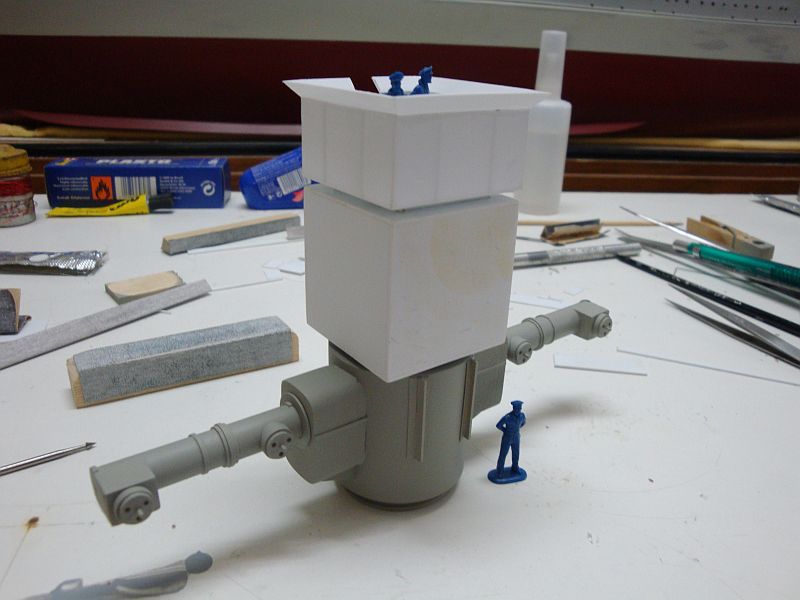

The range finder assembly with some 1:72 scale figures for appreciation of scale.


0.3mm diameter copper wire for the range finder access ladder.


Holes for the access ladder steps drilled in the aluminium housing. Note also the rivets.


The first step to forming the access steps.


The second step.

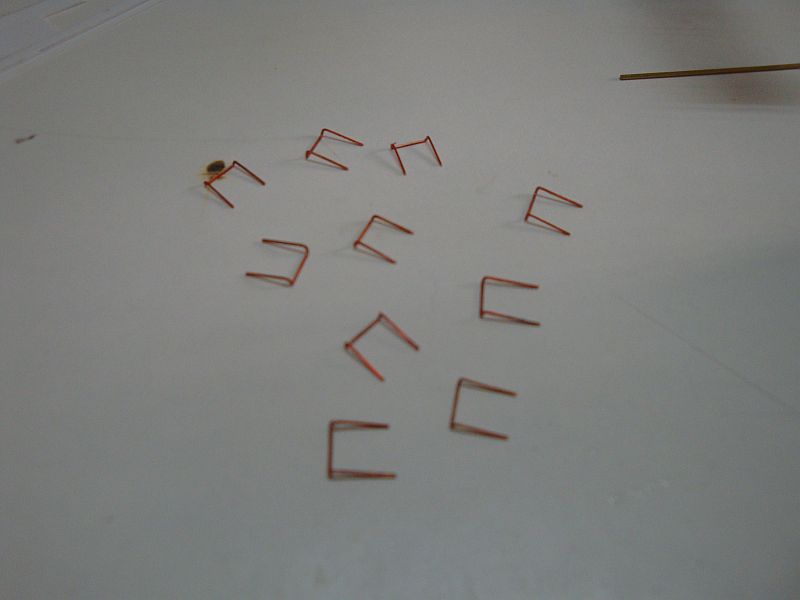

The set of access steps.


The access steps in place.


The first radar in place, the FuMB 4 SAMOS Radar.


A rear view showing the rear detail.


The final wire meshes on the FuMO 27 Radar.


More copper wire pieces for another set of access steps.

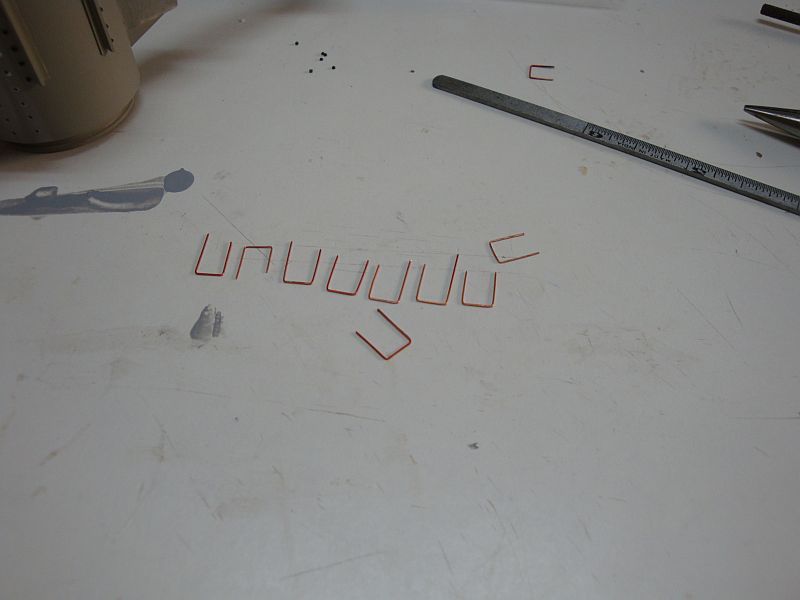

Forming the steps.


The final touch.

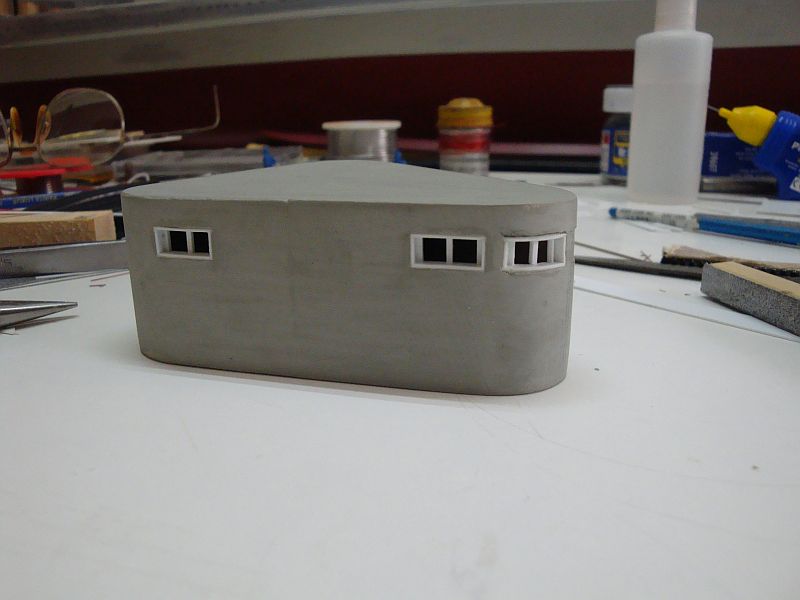

Armoured windows.

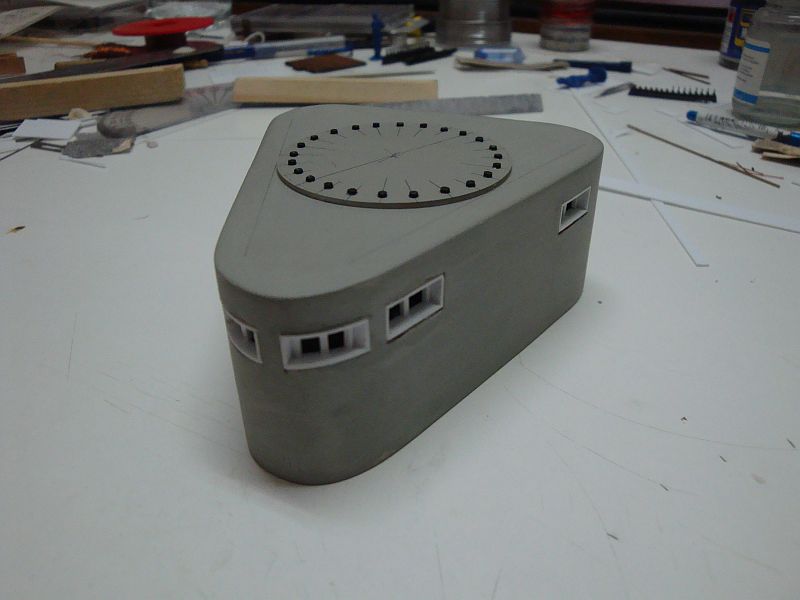

The armoured observation post, which serves as a base for the range finder.



I shall be posting more pictures tomorrow morning.

Good night.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

LTgarp

Beiträge: 13 554

Realname: Roland

Wohnort: Stuttgart

  • Nachricht senden

62

Dienstag, 11. September 2012, 23:38

wow paul! some more crazy stuff! could bathe in those pix!
incredible! good night
roland
PS do you know the eurovision song contest?
malta twelve points
malta douze points :D

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

63

Mittwoch, 12. September 2012, 06:20

Scharnhorst

Good morning Roland, :pc:

Thank for your encouraging comments. 12 points is the maximum in the Eurovision - So that means that I have passed the test.

I am posting the third part of the radar assembly before I go to work.

The mounting platform for the range finder.

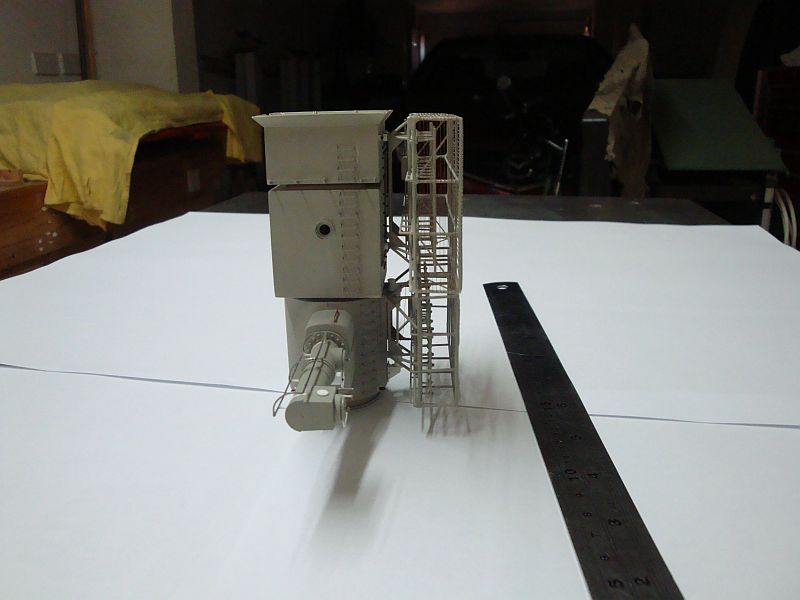

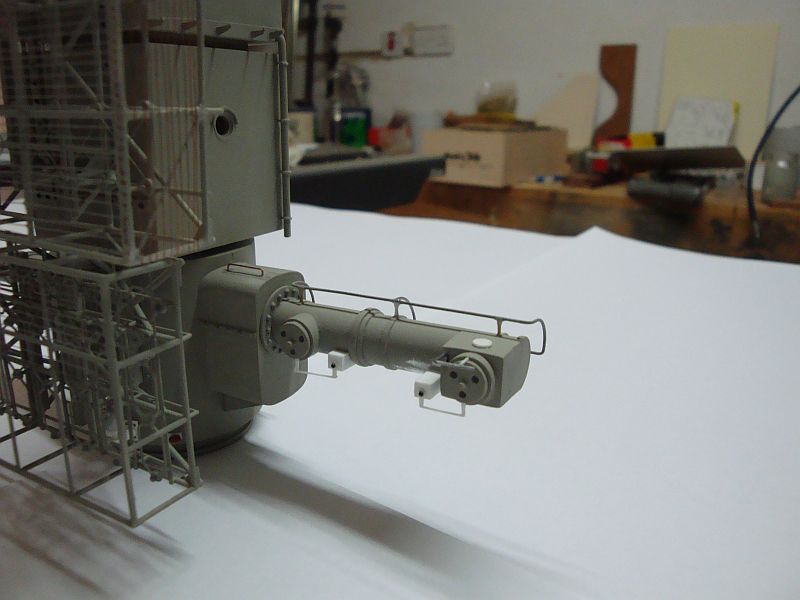

The whole assembly.

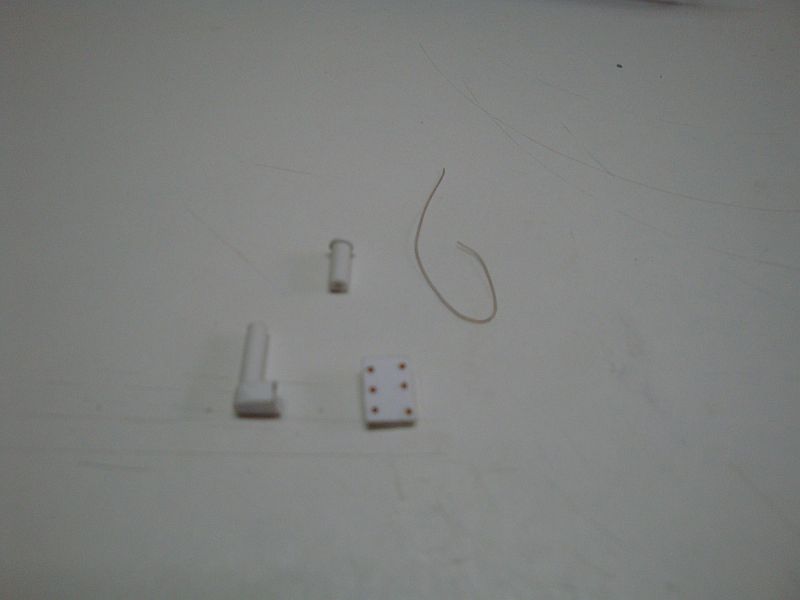

The parts forming part of the FuMB 4 SAMOS radar stabilizer.


Another view of the same parts.

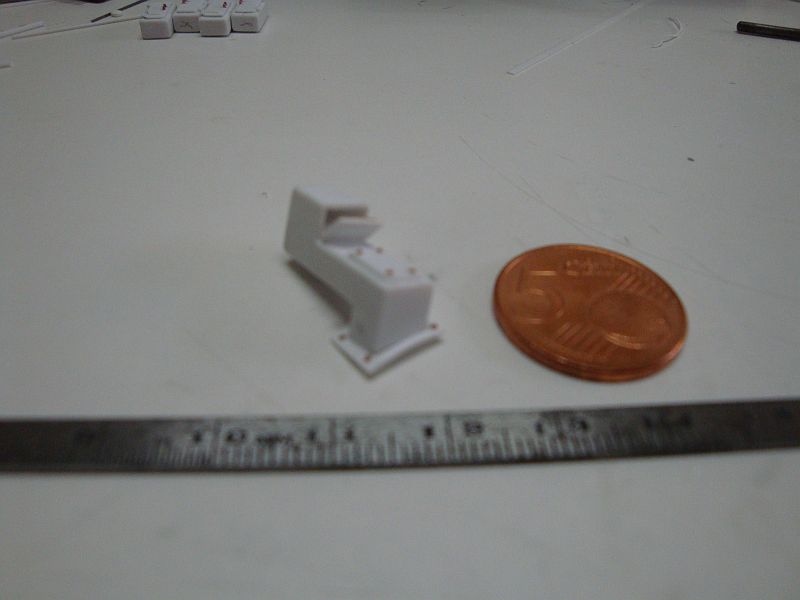

Comparison of size with a 5cent coin.


The motor acturator housings. These operated arm link to rotate armoured shields, when the range finder lens were not in use.

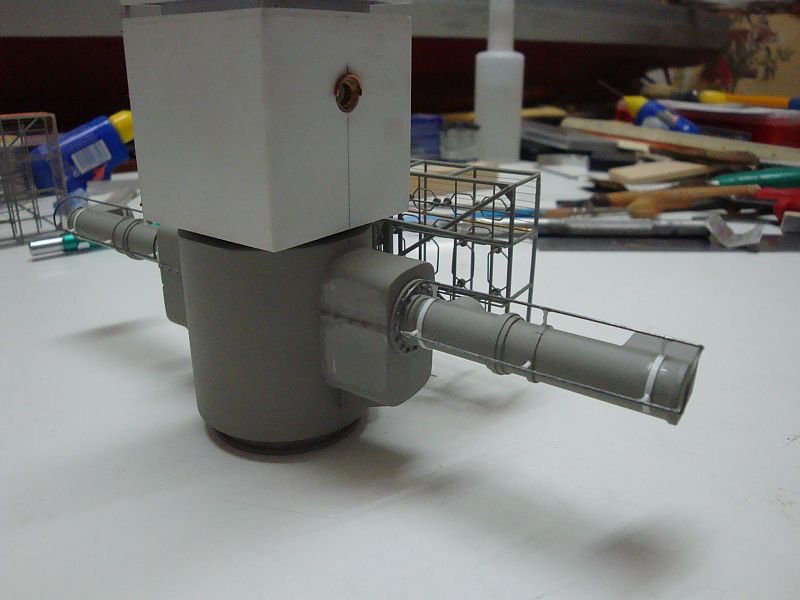

The radars assembled in place and the lens operating arms in place as well.


A side view.


A picture showing the surge arrestor and pneumatic stabilizer for the FuMO 27 Radar.


A close up on the detail.


A close up of the detail on the other side.


The locking crown for the range finder assembly.



The locking crown in place

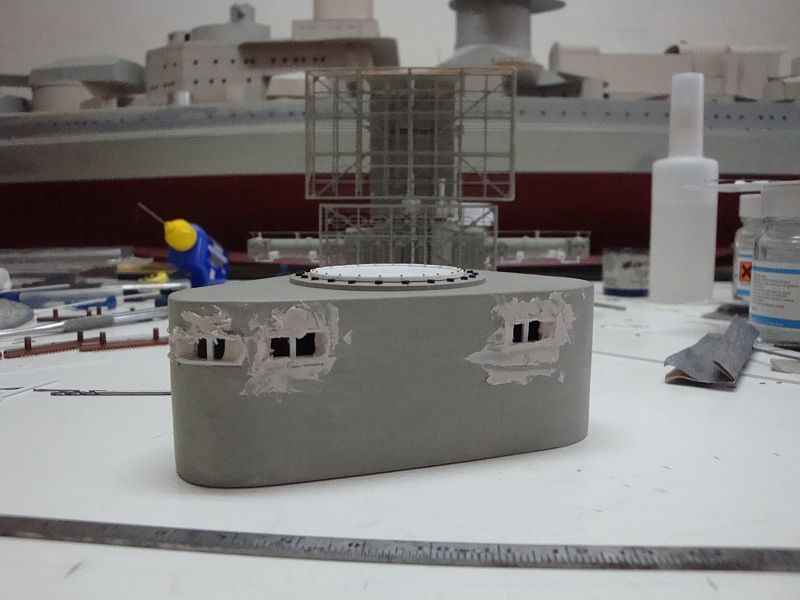

Filling the gaps, prior to sanding.

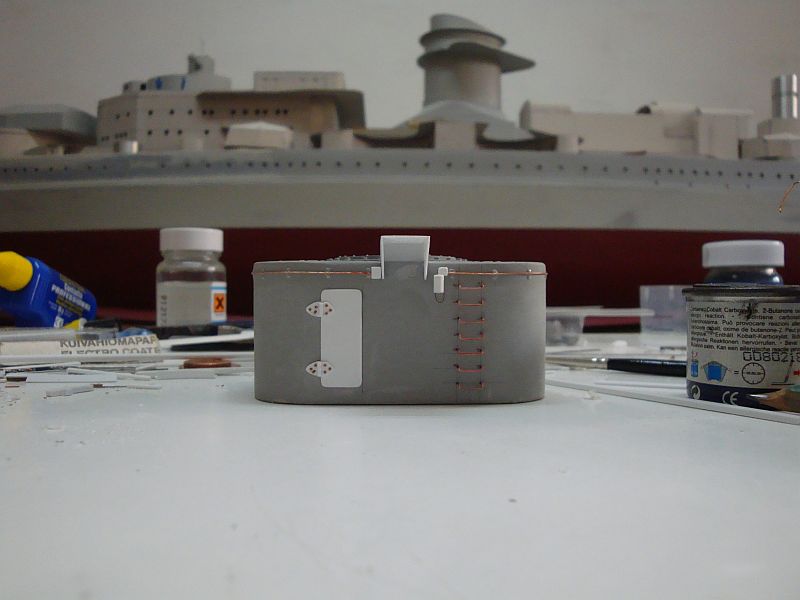

The rear access ladder fitted in.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

LTgarp

Beiträge: 13 554

Realname: Roland

Wohnort: Stuttgart

  • Nachricht senden

64

Mittwoch, 12. September 2012, 08:51

good morning paul, so do we see any tichy train parts on those pics?
:wink: roland

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

65

Mittwoch, 12. September 2012, 09:22

Scharnhorst

Hallo Roland, :thumbsup:

Yes you can see the Tichy train rivets in the last set of pictures, that I have posted this morning.

0.3mm diameter rivets, for the base plates of the radars surge arrestors and dtabilizors.
0.5mm diameter rivets, for the base crown locking ring.

The rest of the rivets and bolt heads and CMK resin - very expensive. I will not buy that type again. 8 Euro per 60 pieces.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

66

Mittwoch, 12. September 2012, 09:23

Scharnhorst

Hallo Roland, :thumbsup:

Yes you can see the Tichy train rivets in the last set of pictures, that I have posted this morning.

0.3mm diameter rivets, for the base plates of the radars surge arrestors and stabilizors.
0.5mm diameter rivets, for the base crown locking ring.

The rest of the rivets and bolt heads and CMK resin - very expensive. I will not buy that type again. 8 Euro per 60 pieces.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

DrHobo

Inaktiver User

  • »DrHobo« wurde gesperrt

Beiträge: 1 040

  • Nachricht senden

67

Mittwoch, 12. September 2012, 09:34

Paul,

that is just ... beyond words, man. Beyond words.

LTgarp

Beiträge: 13 554

Realname: Roland

Wohnort: Stuttgart

  • Nachricht senden

68

Mittwoch, 12. September 2012, 10:29

you took the words right out of my mouth dr hobo

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

69

Mittwoch, 12. September 2012, 10:35

Scharnhorst

Hallo Andreas, :lol:

Thanks a lot for your kind comment and for looking in.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

Matchstik

Beiträge: 2 351

Wohnort: Sarstedt / Hannover

  • Nachricht senden

70

Samstag, 15. September 2012, 05:38

Hello Paul

Welcome on this Forum.
Great Work,the "Scharnhorst",i build his in 1:100,from Matchstiks.
Is the Funnelbase right? Under the Hangaroverhang?
sorry for my english..lol
Uwe
Rettet den deutschen Wald,esst mehr Biber!
http://www.streichholzbastler.eu/

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

71

Sonntag, 16. September 2012, 18:49

Hello Uwe, :wink:

Don't worry about your English, I wish I could speak a bit of German, as I would communicate better with all of you.

Regarding your question, yes the base of the funnel tapers down on both the front and the rear, so part of the aircraft hanger over rides the base of the funnel. Some plans also show a walkway going from the front of the aircraft hanger to the funnel and opens towards the range finder housings, located on either side of the funnel. Must check that before I do anything, as sometimes information is false, so one must always stick to copies of original photos whenever possible.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

derJan

Beiträge: 1 125

Realname: Jan

Wohnort: Leipzig

  • Nachricht senden

72

Sonntag, 16. September 2012, 21:00

I lost my words. Respect for your work.

:ahoi: Jan

Kati

Beiträge: 220

  • Nachricht senden

73

Montag, 17. September 2012, 07:46

Good Morning Paul,

congratulations, your Scharnhorst looks darned well.
8| and where is the rigging?? :)

regards
Im Bau: HMS Boyne 1790 Rumpfmodel
Im Bau: HMS Fly 1776 1:64 Victory Models
Fertig: H.M. Lady Nelson

Herr Milton Seriööös HMS

Beiträge: 3 183

Wohnort: Bermudarechteck

  • Nachricht senden

74

Montag, 17. September 2012, 08:44

Zitat von »Kati«

and where is the rigging?? :)

A ship without rigging?! Is it possible? It must be a galley. :baeh:
Really good work!
lg
hms

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

75

Mittwoch, 26. September 2012, 14:05

Scharnhorst

Good afternoon all, :schrei:

Please excuse me for my long absence, I was a bit busy with other things and now I shall post more pictures related to the progress on the radar installation.

The work on the storage cabintets to be installed in the open observation post.


The same cabinets with details added on.


The cabinets with the locking handles in place.


The comminications equipment, including the te;ephone hand set.


The ventilator cowling which shall be installed at the rear of the range finder housing, adjacent to the access ladder.


The cover of the access hatch , made from seven parts.


The cover over the access opening.


The access hatch.


A view of the radar in place.


The access door for the armoured observation post.


A rear view showing the bracket liners for the electrical conduit to feed the externally mounted light fittings.

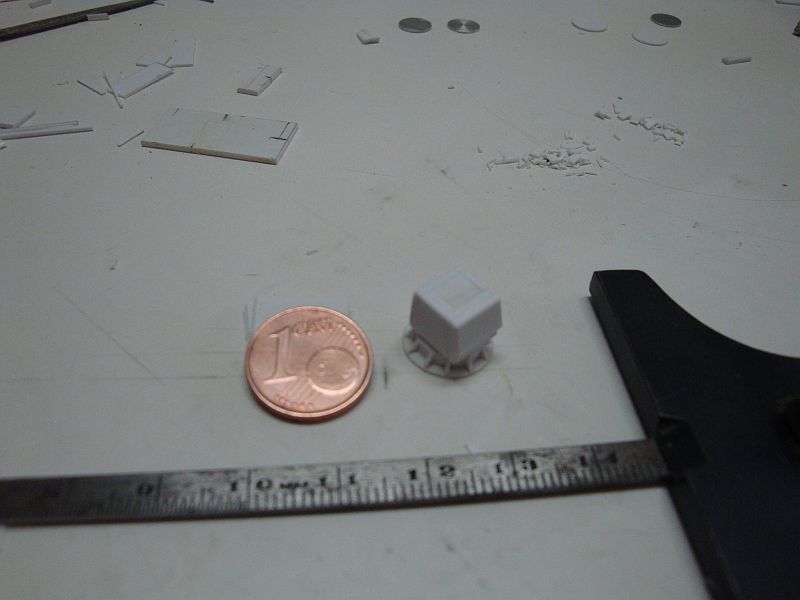

The first base for the armoured perescope - three are needed for now.


The second base in progress.


The base shape of the armoured perescope placed on it's base.

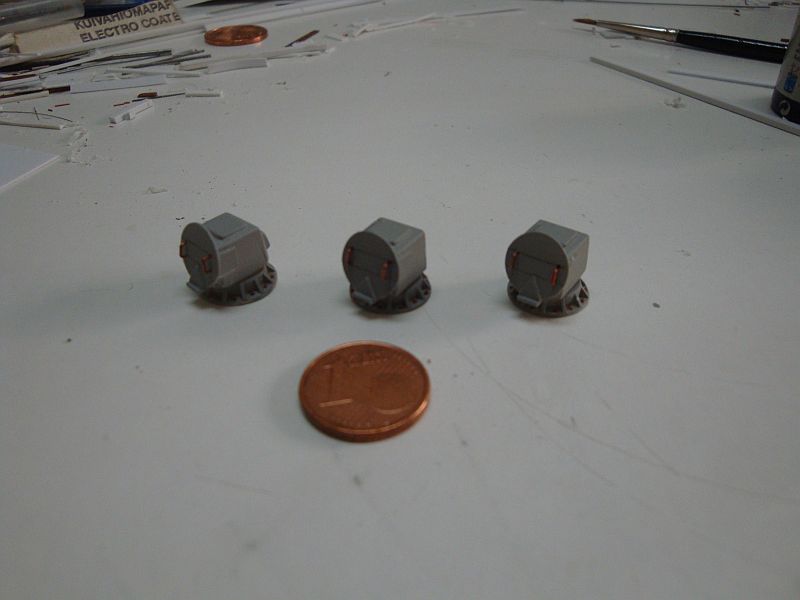

The three perescopes ready for the base primer coat.



Shall be posting more pictures soon.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

76

Mittwoch, 26. September 2012, 14:22

Scharnhorst

Hello my friends, :baeh:

I am posting more pictures.

Starting to plan out the linings for the non slip decking.

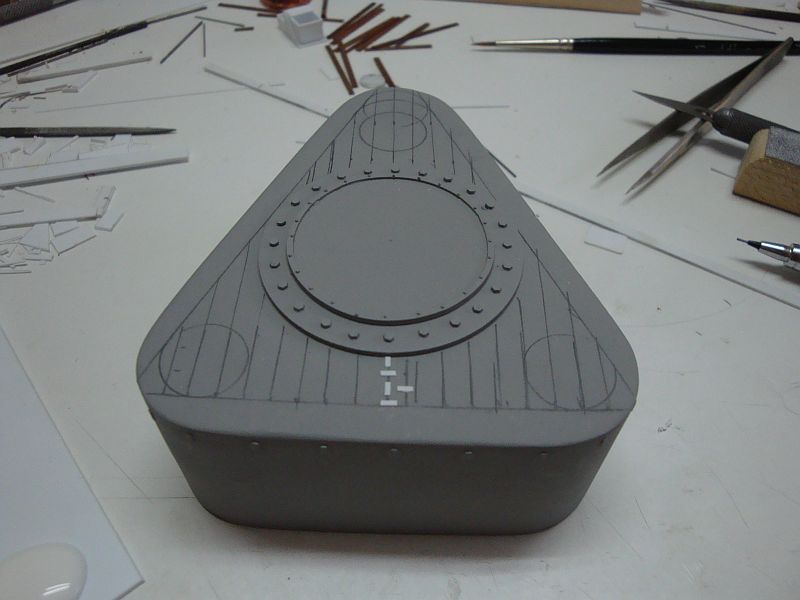

All lines marked out, including the space required for the siting of the armoured perescopes.

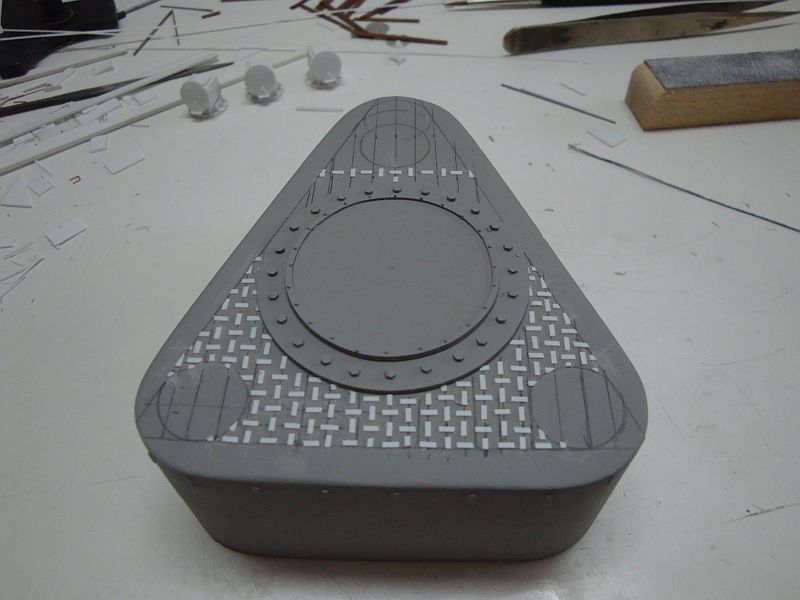

Works well underway.


The rear side is ready.


Preparing to do the last piece.


The non slip flooring is ready - nearly seven hours of work.

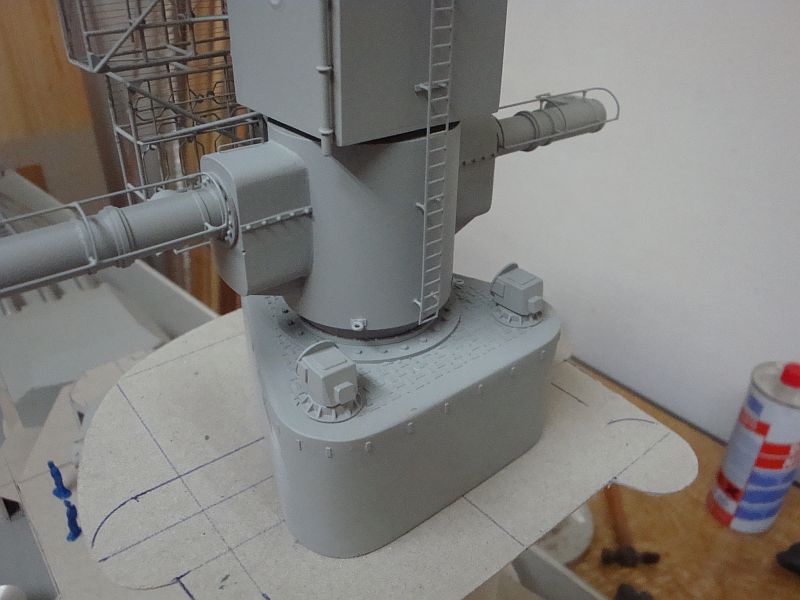

A view of the non slip decking with the armoured perescopes in place.


The first base coat.


A general view.


A rear view with the radar in place.



I shall try to post more pictures today.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

Flo1987

Beiträge: 64

Realname: Florian

Wohnort: Maria Enzersdorf, Niederösterreich

  • Nachricht senden

77

Donnerstag, 27. September 2012, 12:16

Hey Paul!

Absolutely overwhelming pics! Thanks for sharing them! Although I'd never have nerves for doing such a big project, I am fascinated by looking at those pics!
It's kind of unbelievable, to be honest, all those tiny details, the love you obviously can afford for this ship, great!

Thanks for sharing the progress in building this ship, I'm gladly looking forward seeing new steps!

Yours,
Florian

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

78

Sonntag, 30. September 2012, 11:22

Hello Florian, :wink:

Thanks for the kind words and for looking in my log.At the moment I am working on the fore top balcony, on which the radar was mounted. But the planking is very difficult to place, especially around the circular contours of the balcony. But bit by bit, I shall complete the planking and switch to the next job, which is the parapet wall of the balcony.

Shall post some more pictures tomorrow.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

79

Dienstag, 2. Oktober 2012, 08:45

Good morning all, :rolleyes:

Today I am posting the last pictures related with the progress of the the armoured observation post and the beginning of the works related to the planking of the open type foretop observation platform, which was situated on the bridge tower




















Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

80

Dienstag, 2. Oktober 2012, 09:04

Hello my friends, :wink:

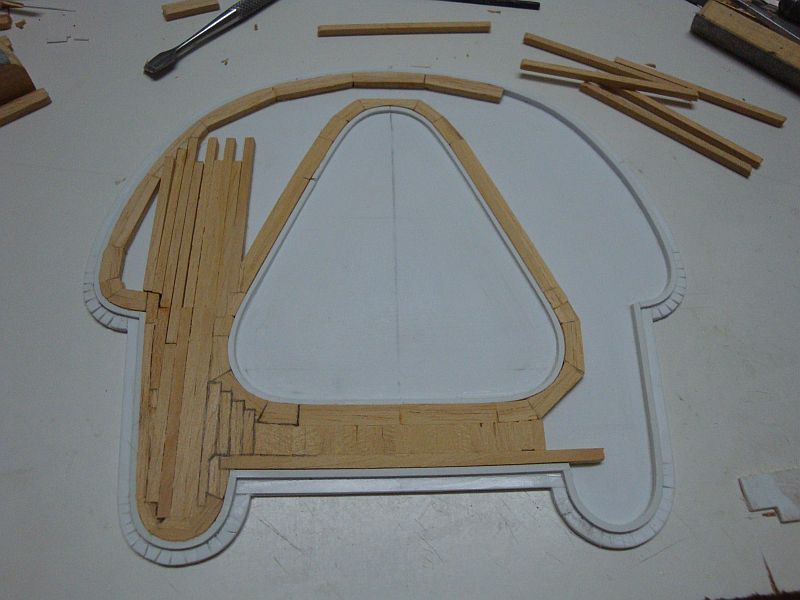

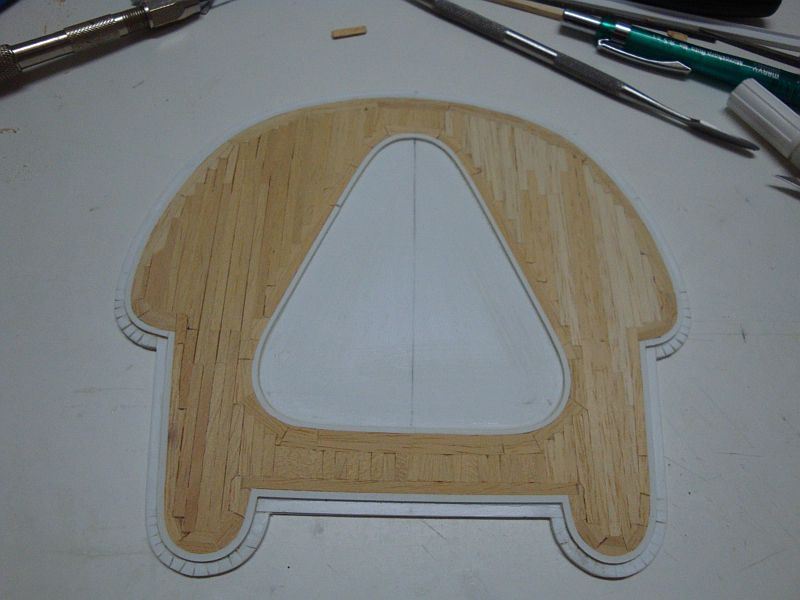

The progress pictures related to the planking of the open type foretop observation plaform.

Please don't laugh, this is my first planking job.

















Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

Davy Jones II

Beiträge: 2 477

Realname: Sergio

Wohnort: Tegerfelden

  • Nachricht senden

81

Dienstag, 2. Oktober 2012, 17:34

Aye Paul :wink:

It looks great, very good job. :ok: :ok: :ok: :ok:

Regards
Sergio
In der Werft : Revenge 1577
Fertig : Avalon

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

82

Mittwoch, 17. Oktober 2012, 13:08

Hello all, :rolleyes:

Thanks for lookinh in Sergio, and for your kind comments.

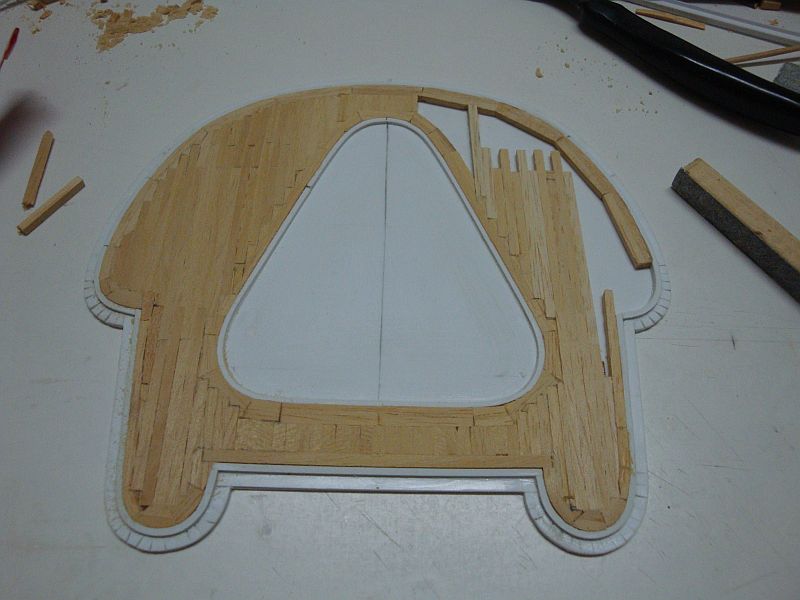

Finally I found some time to finalize the wooden decking of the observation platform.

Below are some pictures.












I still have a lot of work to do, but the staining of the wood is already in progress. After that, I will have to carry out all the lining with a balck coloured 0.25mm permanent fine liner.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

calahan

Beiträge: 175

Realname: Dennis

Wohnort: Reutlingen

  • Nachricht senden

83

Mittwoch, 17. Oktober 2012, 23:30

:ok: WOW Great Work! :ok:

To sad its no rc-model so youn't can see it fighting on water Would have been impresiv at that scale ^^
Gruß Dennis :smilie:

LTgarp

Beiträge: 13 554

Realname: Roland

Wohnort: Stuttgart

  • Nachricht senden

84

Montag, 12. November 2012, 22:39

hi paul, didn't hear from you for quite a long time. I wonder if you make a break or forgot about this forum.
still a lot of people here, that would love to see your build to be continued....
give a short update, if you find the time :)
cheers'n stuff, roland

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

85

Donnerstag, 29. November 2012, 10:47

Hello Roland, :ahoi:

Please accept my sincere apologies. :( I had to take care of the house and carry out some maintenance works. especially on the roof. :schrei: My wife, gave me a very strict order - first work and then modelling. Only this week, I started off again, working a bit on the tower operations bridge.
As soon as I have some Photos, I will surely post them.

DON'T WORRY, I DID NOT FORGET ABOUT THIS FORUM.

Cheers.

Paul.
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

LTgarp

Beiträge: 13 554

Realname: Roland

Wohnort: Stuttgart

  • Nachricht senden

86

Donnerstag, 29. November 2012, 11:11

hi paul, thanks for your udate, be sure I can relate......
thought I had to ask, as sometimes people get lost in cyber space!
cheers back
roland

Paul Salomone

  • »Paul Salomone« ist der Autor dieses Themas

Beiträge: 76

  • Nachricht senden

87

Montag, 10. Dezember 2012, 16:22

Scharnhorst

Hello My Friends, :wink:

Sorry for my long absence. As I have already explained, my house needed some urgent repairs and maintenance, so I had to dedicate some of my time to house duties. :bang:

Now I am back again, and working on the conning tower captain's command bridge. I shall be able to post some pictures in the next coming days. :lol:

I am also trying to detail the inside of the bridge, but have only a couple of pictures and not clear. I would be very grateful if anyone can post some pictures of the captain's bridge - especially the internal. This will enable me to construct all the required detail. :kaffee:
Cheers.

Paul. :ahoi:

NEVER RETREAT - NEVER SURRENDER
JUST DO IT YOUR WAY AND NEVER LOOK BACK

TK5512

Beiträge: 1 697

Realname: Stefan

Wohnort: Schiffweiler

  • Nachricht senden

88

Montag, 10. Dezember 2012, 16:36

Zitat von »Paul Salomone«

I shall be able to post some pictures in the next coming days.

No try
Di it, or do it not.
There is no try. (Yoda)

I hope u understand my english. :doof:

Great work, i want to see more.
Much more... :ok:

br
Stef

"Nur lächeln und winken, Männer."

dober

Beiträge: 358

  • Nachricht senden

89

Montag, 10. Dezember 2012, 20:36

Hi Paul :wink:

first i must say .....WOW your Scharnhorst build is really amanzing :respekt: The details of the ship are so beautyfull and exactly , i love thats very much . Now i will progress your build in the future and hope to learn a little bit from your fantastic building-log :)

greets

Christian
Meine Objekte :

1/150 Graupner Flotte

1/144 Vought OS2U

1/350 YAMATO

LTgarp

Beiträge: 13 554

Realname: Roland

Wohnort: Stuttgart

  • Nachricht senden

90

Montag, 10. Dezember 2012, 22:00

I will make it short paul! good to have you back!!!!
anticipating new pleasures
roland

Ähnliche Themen

Werbung
